IP67 E Bike Energy Storage Connector 2 Plus 4 Tower Multipurpose

Name: IP67 E Bike Energy Storage Connector 2 Plus 4 Tower Multipurpose
Brand: Hexie
Price: 1 USD

Wholesale IP67 E Bike Energy Storage Connector 2 Plus 4 Tower Multipurpose from china suppliers

Brand Name : Hexie

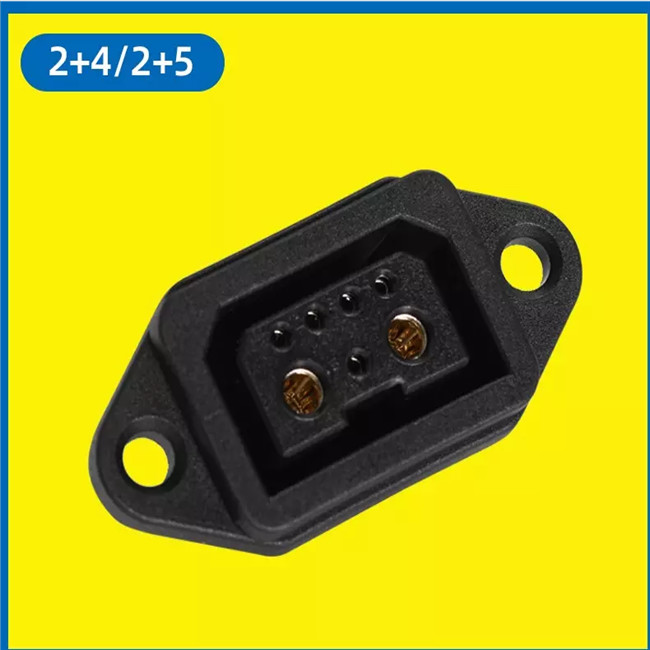

Model Number : Electric car plug 2+4/2+5

Certification : ROHS

Place of Origin : Guangdong,China

MOQ : 500

Price : negotiatable

Delivery Time : 3-7 working days after receive payement

Packaging Details : wateproof and hard cartons

Type : Electrical Plug

Rated Voltage : 220V

Application : New Energy Electric Vehicle Lithium Battery

operate temperature : -20℃ to +80℃

Flame Glasse : UL94V-2

service life : 4000times

Withstanding Voltage : 750V

Insulation Resistance : ≥20MΩ

Contact Resistance : ≤10mΩ

Contact Now

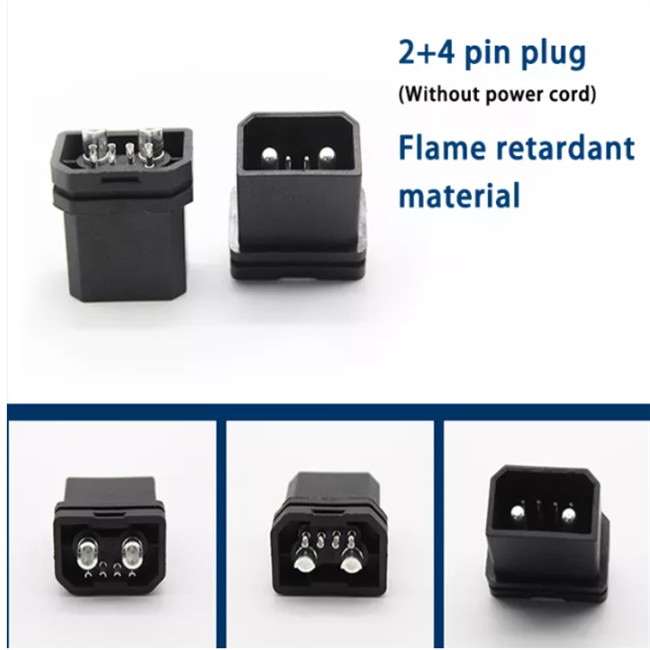

E-bike energy storage battery connector 2 + 4 Tower Energy Storage Connector

Electrical Characteristics

Rated Voltage

48V AC/DC

Rated Current

40A and 5A

Withstanding Voltage

750V

Insulation Resistance

≥20MΩ

Contact Resistance

≤10mΩ

Mechanical Characteristics

Mating Type

Insertion Force 80N Max,Extraction Force 30N Min

Mating Cycles

5000 Times

Performance

Operation Temperature

-25℃~+80℃

Protection Degree

IP67

Wires Specification

Max Outer Diameter

15mm

Mating Length

51mm

Contact Material

Copper alloy plated with gold which conforms to military standard

Wire Section

4mm²/ 2.5mm²/0.3mm²

IP67 E Bike Energy Storage Connector 2 Plus 4 Tower Multipurpose
